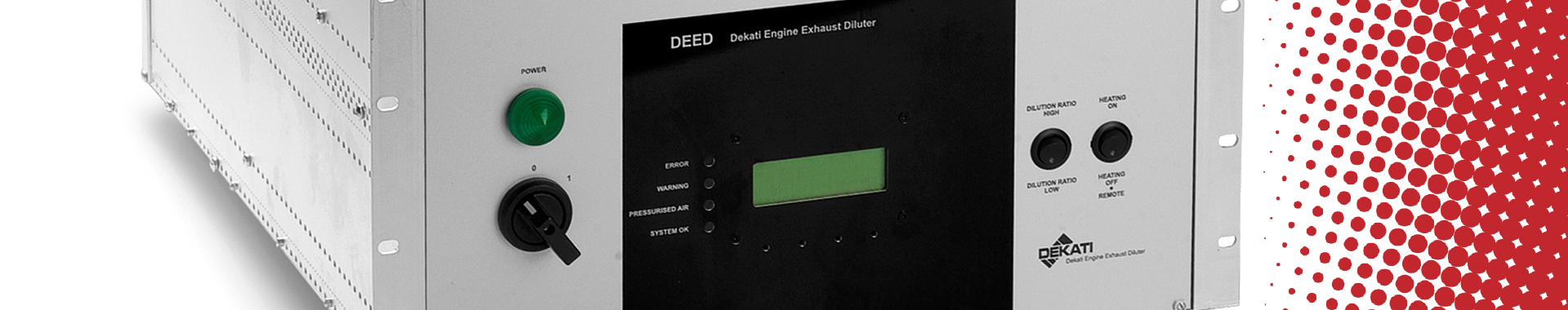

Dekati® DEED

18.12.2018

The Dekati® Engine Exhaust Diluter DEED is an engine exhaust conditioning system that fulfills all requirements and recommendations set forth by EURO 6 legislation for a VPR (Volatile Particle Remover). The DEED unit can be used together with any particle concentration or size distribution measurement device since the sample at the outlet of the DEED is in ambient temperature and pressure, and the pressure fluctuations are minimal. Each DEED unit is calibrated for PCRF (Particle Concentration Reduction Factor) and evaporation efficiency as required in the EURO 6 legislation and provided with a calibration certificate. The operation of the DEED is based on two particle number diluters (PND) and an evaporation chamber between the two diluters. The diluters used in the DEED system are Dekati® Ejector Diluters that have a stainless steel, no-moving-parts construction. This provides the needed reliability even for long term operation and makes the whole system simple and easy to operate. An additional, optional dilution stage is placed in front of the second Dekati® Diluter to further increase the dilution factor. All the components of the DEED system are contained in a rack mountable cabinet.

Contact sales


Features of the engine exhaust diluter

  • Two stage dilution system with widely used and well characterized Dekati® Diluters as particle number diluters (PND)
  • Evaporation chamber or catalytic stripper to remove volatile particles
  • Fulfills all EURO 6 recommendations for a VPR
  • Fulfills ISO8178:2017 standard for exhaust emission measurements
  • Dilution factor (PCRF) calibrated with solid particles
  • Evaporation efficiency calibrated with tetracontane particles
  • Simple user interface – only two operation switches
  • High/Low dilution factor (100 or 1000)
  • Heating on/off
  • Always constant dilution factor
  • Robust construction with no moving parts
  • The entire instrument contained in a rack mountable cabinet
  • Accessories available also for tailpipe sampling both before and after a DPF
